About CATTLE FEED PELLET MACHINE 1000 KG HOUR

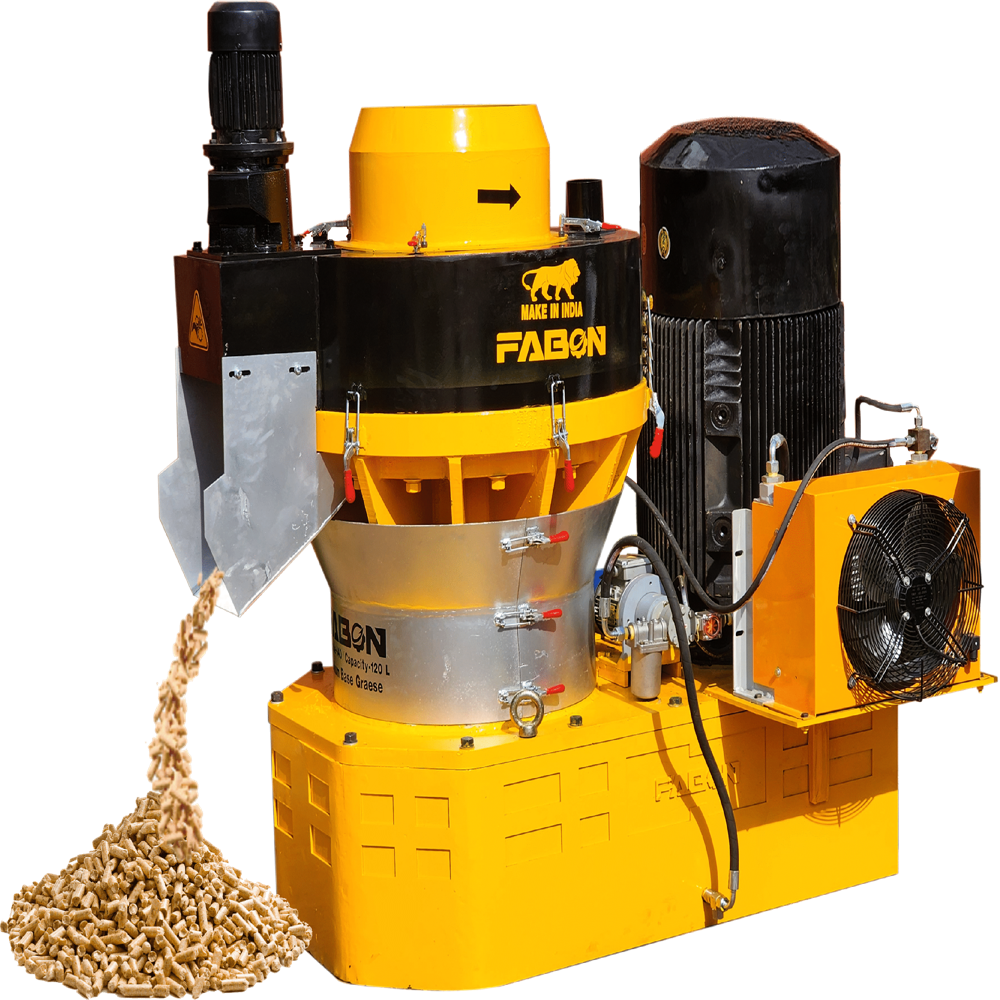

FABON Cattle Feed Pellet Machine 1000 kg/hr

High-Capacity Solution for Nutritious & Durable Cattle Feed Pellets

Product Overview

The FABON Cattle Feed Pellet Machine (1000 kg/hr) is designed to convert a wide range of feed ingredientsmaize, soybean meal, de-oiled rice bran, groundnut cake, wheat bran, and mineral-vitaminsinto nutritious and digestible pellets for dairy and beef cattle. This machine ensures high pellet durability, uniform shape, and balanced nutrition, helping improve milk yield, weight gain, and overall cattle health.

Applications

• Dairy feed production (milking cows, buffaloes)

• Beef and bull fattening feed

• Goat & sheep pellet feed (with different die sizes)

• Commercial cattle feed plants and cooperatives

Key Features

• Capacity: 1000 kg/hr (1 TPH) continuous operation

• Pellet Size Options: 4 mm, 6 mm, 8 mm, 10 mm (as per requirement)

• Heavy-Duty Design: Robust gearbox and main drive for 20+ hours/day running

• Efficient Conditioning: Pre-conditioning system for better starch gelatinization & digestibility

• High Pellet Durability Index (PDI): 95% with proper raw material balance

• Energy Efficient: Optimized die/roller design reduces kWh/ton feed cost

• Ease of Use: Semi-automatic with control panel & overload protection

Technical Specifications (Typical Model)

• Capacity: 1000 kg/hr finished pellets

• Main Motor: 4050 HP (depending on recipe & raw material)

• Conditioner Motor: 35 HP

• Feeder Motor: 12 HP (VFD controlled)

• Pellet Die: Alloy steel / stainless steel, 410 mm hole size (replaceable)

• Roller Assembly: Alloy steel, auto-lubrication option

• Pellet Length: Adjustable by cutter blades

• Power Requirement: ~5055 HP connected load

• Final Pellet Moisture: 1012%

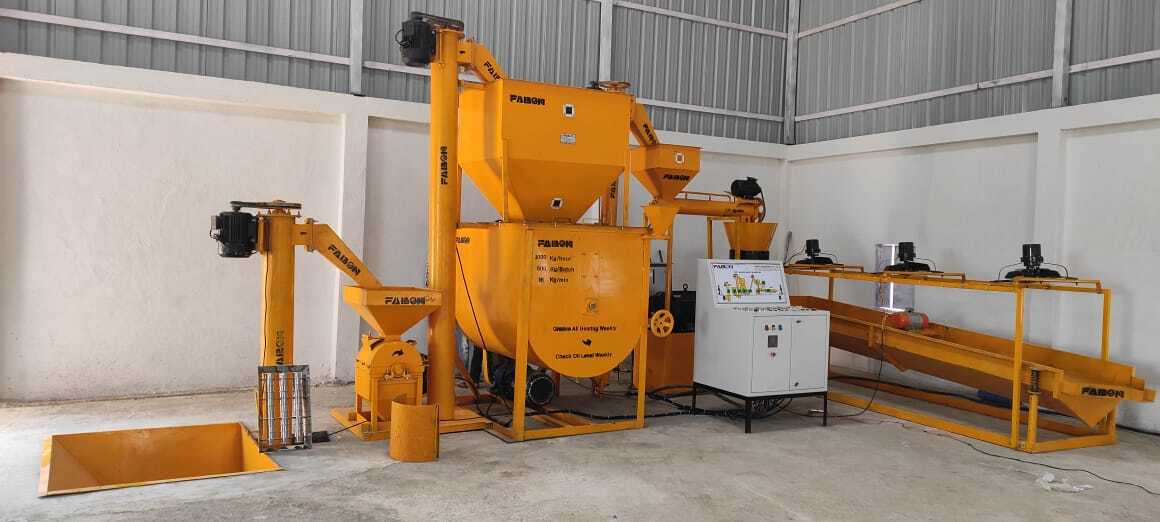

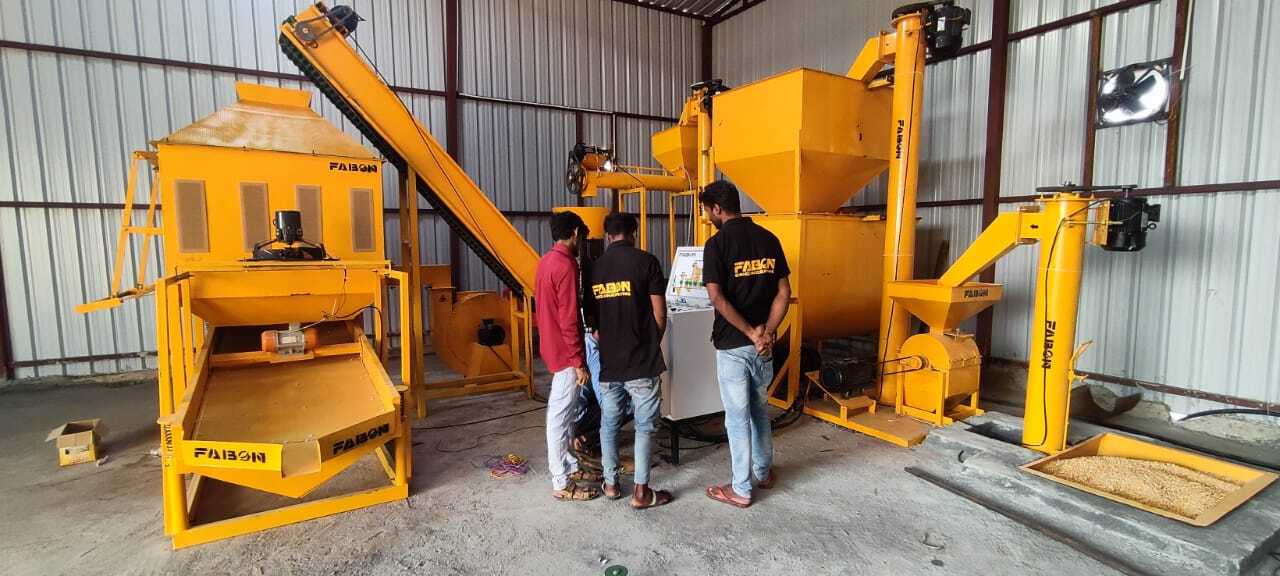

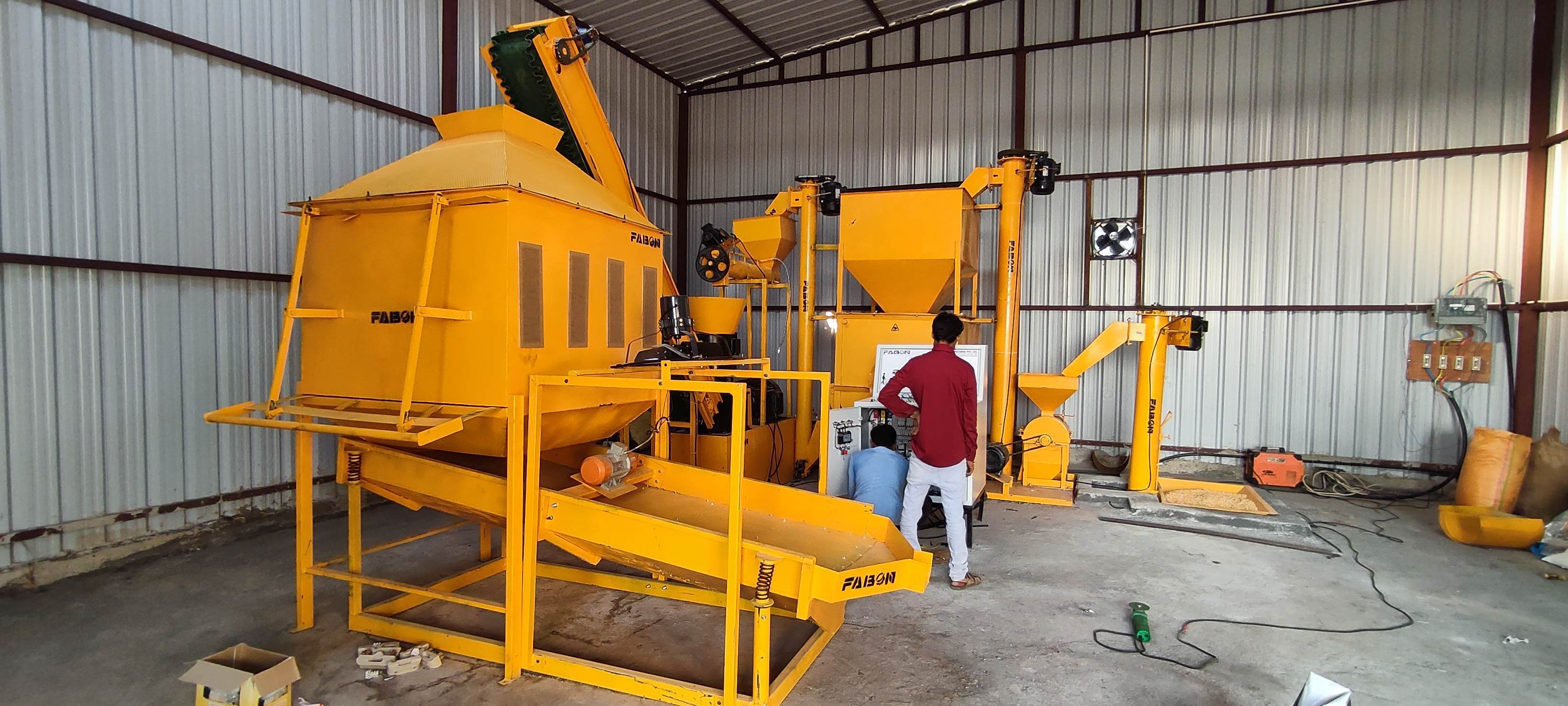

Process Flow in Feed Plant (1 TPH)

Raw Material Grinding (Hammer Mill) Mixing (Batch/Continuous Mixer) Conditioning (Steam/Hot Water) Pelletizing in FABON 1 TPH Pellet Machine Cooling Crumbling (optional) Screening Bagging

Advantages

• Produces uniform, dense pellets easy to handle, store, and transport

• Improves feed efficiency and digestibility for cattle

• Reduces selective feeding & wastage compared to mash feed

• Suitable for both stand-alone machine use or integration in a complete feed plant

• Requires only 23 operators per shift

Maintenance & Safety

• Regular greasing/lubrication of die and rollers

• Die & roller replacement as per tonnage output

• Control panel with overload, choke, and emergency stop

• Enclosed design for operator safety
