AUTOMATIC CATTLE FEED PELLET PLANT 1000 KG HOUR
AUTOMATIC CATTLE FEED PELLET PLANT 1000 KG HOUR Specification
- Automation Grade
- No
- Efficiency (%)
- 90%
- Production Capacity
- 800-1000 Kg
- Country Of Origin
- India
- Usage & Applications
- Industrial
- Motor Power
- 40 Kilovolt-amp (kVA)
- Model No
- CF-1000
- Type
- Automatic Cattle Feed Machine
- Material
- MS
- Computerized
- No
- Automatic Grade
- Semi-Automatic
- Control System
- PLC Control
- Drive Type
- Mechanical
- Voltage
- 220-240 Volt (v)
- Power
- 80 Horsepower (HP)
- Weight (kg)
- 4 Long Ton
- Dimension (L*W*H)
- 40*10*20 Foot (ft)
- Color
- Golden Yellow
- Warranty
- 1 year
- Capacity
- 1000 Kg/hr
- Features
- Good Quality
- Power Consumption
- 90 Kilowatt (kW)
- Machine Type
- Auto
- Surface Finish
- Polished
AUTOMATIC CATTLE FEED PELLET PLANT 1000 KG HOUR Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- NAVASHEVA
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 10 Units Per Week
- Delivery Time
- 4 Week
- Sample Available
- No
- Sample Policy
- If order is confirmed we will reimburse the sample cost
- Main Export Market(s)
- Asia, Africa
- Main Domestic Market
- All India
- Certifications
- AVAILABLE
About AUTOMATIC CATTLE FEED PELLET PLANT 1000 KG HOUR
AUTOMATIC CATTLE FEED PELLET PLANT 1000 KG/HOUR (1 TPH)
By FABON Engineering Pvt. Ltd. | Engineered for Excellence, Trusted by Professionals
Application: Dairy Feed | Poultry Feed | Goat & Sheep Feed | Commercial Feed Plants
Capacity: 1000 kg/hour (1 Ton per Hour)
Raw Material: Corn, Bran, Oil Cakes, Molasses, Additives
Introduction:
FABONs 1 TPH Automatic Cattle Feed Pellet Plant is a powerful and scalable solution for commercial feed producers and large dairy farms. Designed for 24x7 industrial use, this plant ensures high efficiency, low downtime, and superior pellet qualitymeeting BIS and nutritional standards.

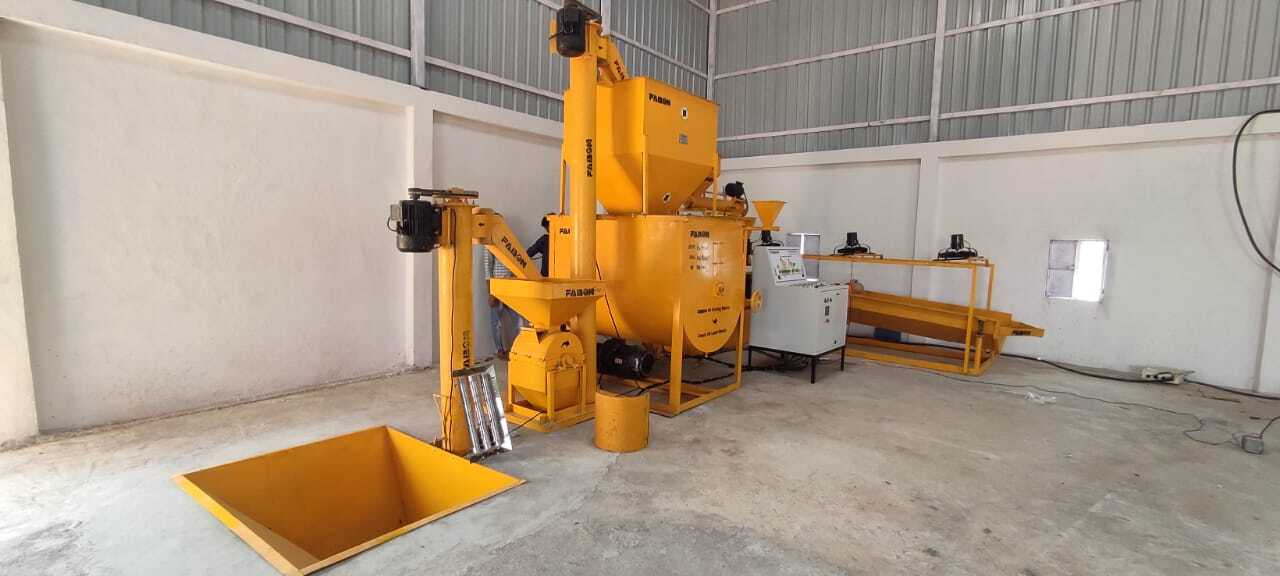

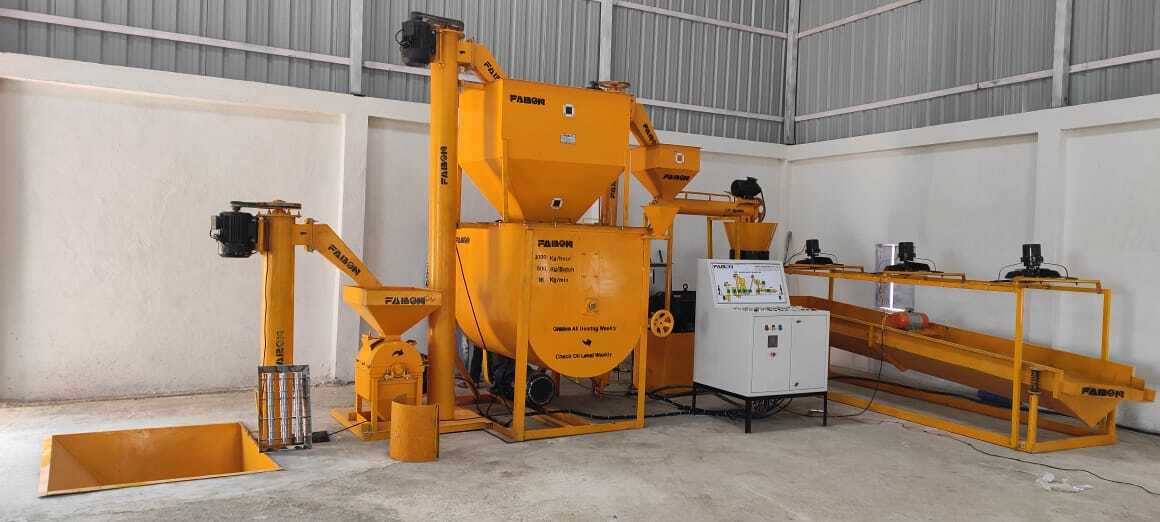

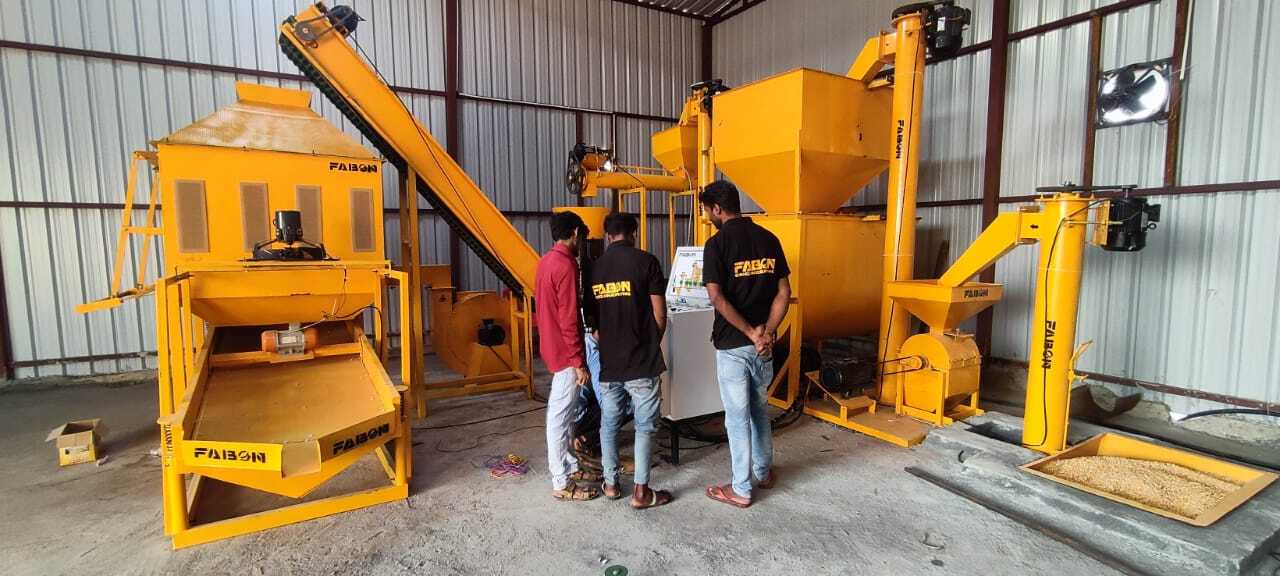

Standard Plant Configuration:
| Section | Equipment | Description |
|---|---|---|
| 1. Raw Material Feeding | Belt/Screw Conveyor | Controlled feeding to grinder |
| 2. Crushing | Heavy-Duty Hammer Mill (2025 HP) | Size reduction of raw materials |
| 3. Mixing | Ribbon or Paddle Mixer (500800 kg/batch) | Homogenizes all ingredients |
| 4. Conditioning (Optional) | Molasses & Steam Conditioner | Moisture adjustment for binding |
| 5. Pelletizing | Ring Die Pellet Mill (4050 HP) | Presses feed mash into uniform pellets |
| 6. Cooling | Counter Flow Cooler | Reduces pellet temperature |
| 7. Screening | Rotary/Vibrating Screen | Removes fines and dust |
| 8. Packing | Weighing & Bagging Machine | 25/50 kg bagging station |
Technical Specifications:
-
Output Capacity: 900 1100 kg/hour
-
Pellet Size: 2 mm 8 mm (customizable dies)
-
Total Connected Load: 90100 HP
-
Power Supply: 3-phase, 415V
-
Automation Level: Semi or Fully Automatic (Optional PLC-HMI)
-
Pellet Durability Index (PDI): >90%
-
Pellet Temperature after Cooling: <5C above ambient
Compatible Raw Materials:
-
Maize/Corn
-
Wheat/Rice Bran
-
Groundnut/Soya DOC
-
Cotton Seed Cake
-
Molasses / Salt / Additives / Minerals
Why Choose FABON?
-
100% Made in India, built to global standards
-
Heavy-duty design for 20+ hour/day operation
-
1-Year Warranty on pellet mill & mixer
-
Spare Parts & Service Readily Available
-
Installation, Testing & On-Site Commissioning
-
Training for Operators & Production Best Practices
Key Benefits:
-
Higher Feed Conversion Ratio (FCR)
-
Reduced feed wastage and dust
-
Better weight gain and milk yield
-
Fully automated or semi-auto options
-
Custom formulation capability
Optional Add-Ons:
-
SS Contact Parts for Food-Grade Quality
-
Molasses Dosing System
-
Steam Boiler for Pellet Conditioning
-
Automatic Weighing & Stitching System
-
Online SCADA Monitoring System
Applications:
-
Dairy Feed Plants
-
Poultry Feed Units
-
Goat/Sheep Feed Production
-
Commercial Feed Brands
-
Fodder Export Units
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
