FABON Biomass Sawdust Dryer

High-Efficiency Drying Solution for Wood Waste and Agro-Residues

Product Overview

The FABON Biomass Sawdust Dryer is engineered to reduce the high moisture content of sawdust, wood chips, rice husk, and agro-residues to an optimum level for pelletizing, briquetting, or combustion. By using a biomass pellet burner or hot-air furnace as the heat source, the dryer delivers consistent drying efficiency with low energy cost, making it ideal for biomass pellet plants, briquette lines, and wood-processing industries.

Applications

• Sawdust drying for pellet manufacturing

• Wood chip moisture reduction for briquette plants

• Rice husk, agro-waste, corn cobs, bagasse drying

• Pre-drying for biomass gasification or combustion boilers

Types of Sawdust Dryers

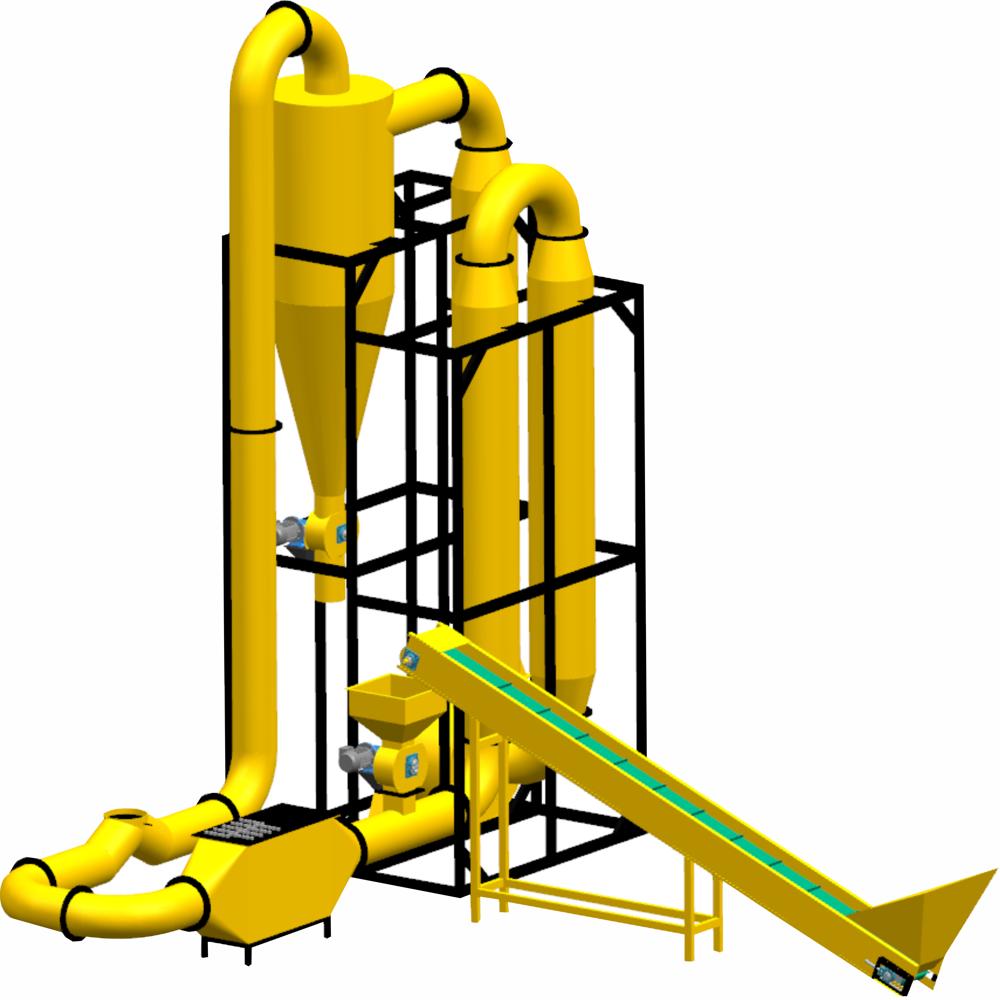

1. Flash Dryer Best for fine sawdust, capacity up to 13 TPH.

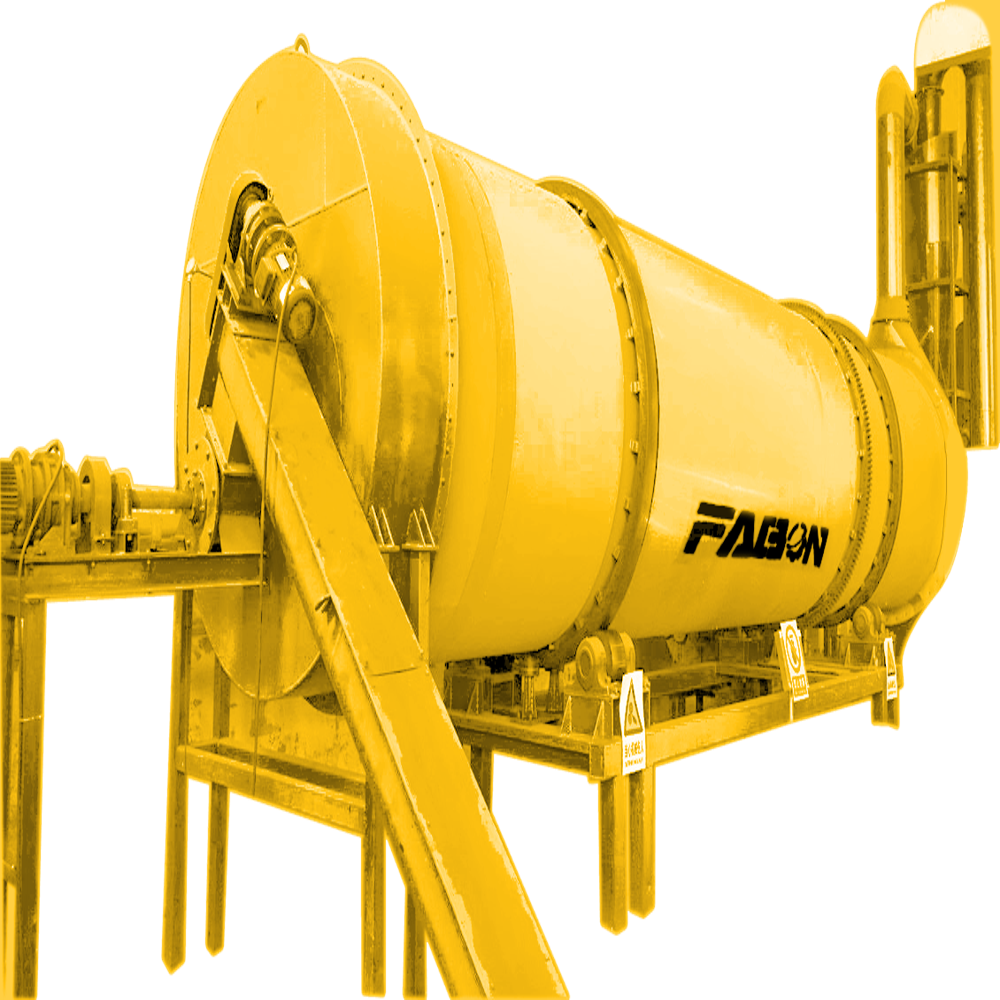

2. Rotary Drum Dryer Heavy-duty, continuous drying for 110 TPH or more.

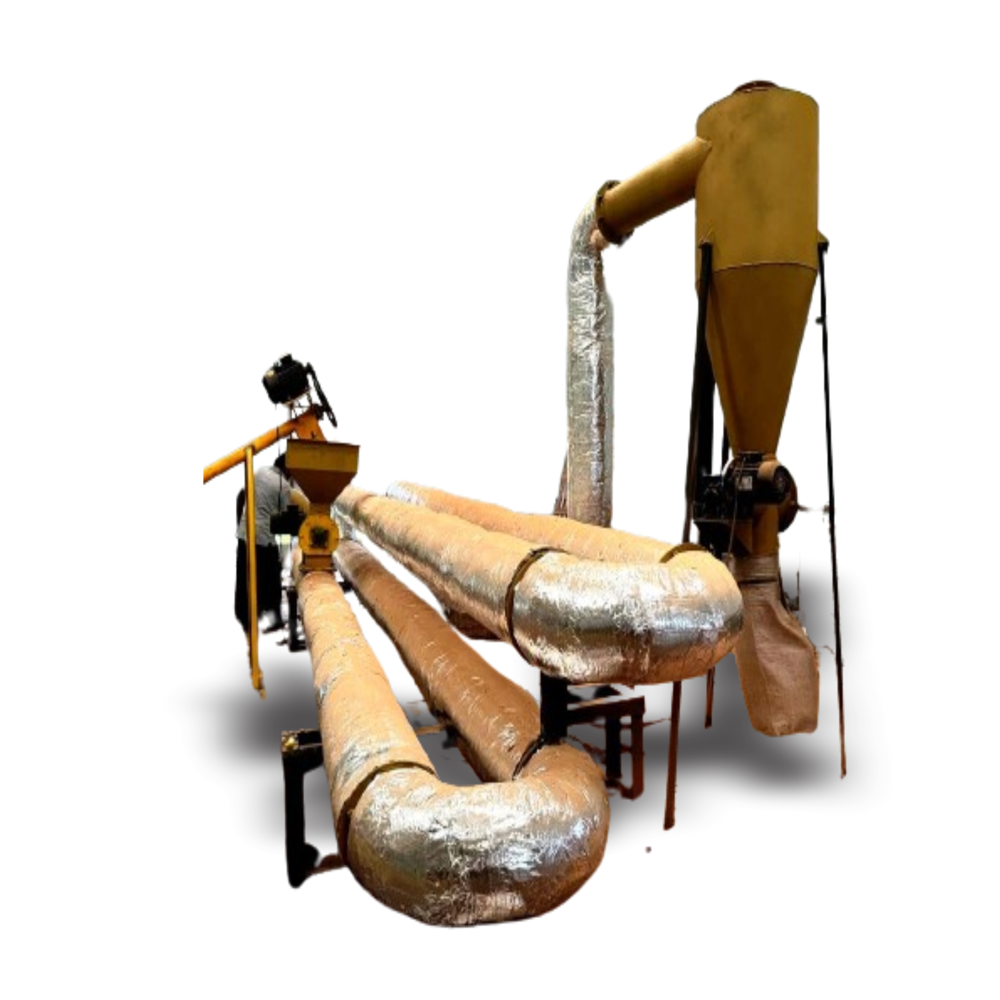

3. Pipe Dryer Compact design for small-scale plants (500 kg/hr).

Key Features

• High Drying Efficiency: Reduces moisture from 3550% down to 812%.

• Fuel Flexibility: Operates on biomass pellets, firewood, rice husk, or coal.

• Robust Design: Heavy-duty steel construction for long service life.

• Energy Saving: Uses waste heat recovery & optimized airflow design.

• Consistent Output: Stable final moisture ensures smooth pelletizing.

• Emission Control: Cyclone dust collector / bag filter to meet pollution norms.

Technical Specifications (Typical Rotary Dryer 2 TPH)

• Capacity: 500 kg/hr to 10 TPH

• Raw Material Moisture: 3555%

• Final Moisture: 812%

• Dryer Type: Rotary drum (3-pass optional) / Flash / Pipe

• Drum Diameter: 1.22.4 m (depending on capacity)

• Drum Length: 815 m

• Motor Power: 10 HP to 50 HP (drive + ID fan)

• Burner Heat Capacity: 3 Lakh kcal/hr 20 Lakh kcal/hr

• Fuel Consumption: 200400 kg/hr biomass (for 2 TPH line)

• Material of Construction: MS / SS contact parts (optional)

Process Flow

1. Wet Sawdust Feeding via screw conveyor

2. Hot Air Generation using biomass pellet burner or furnace

3. Contact Drying in rotary drum / flash pipe

4. Moisture Evaporation & Exhaust through cyclone & ID fan

5. Discharge of Dry Sawdust ready for pellet mill or briquette press

Advantages

• Uniform drying with controlled retention time

• Easy integration with pellet or briquette lines

• Safe operation with temperature monitoring & interlocks

• Lower OPEX compared to electrical or fossil fuel dryers

• Modular design expandable capacity

Maintenance & Safety

• Daily check of bearing lubrication, seals, and ID fan belts

• Periodic inspection of drum liners, flights, and ducting

• Equipped with temperature sensors, fire arrestors, emergency shut-offs
